ProFace X [P]
Introducing the ProFace, a cutting-edge, standalone access control device that leverages visible light facial recognition technology to enhance both security and convenience. Featuring a large 8-inch IK04 touch screen and robust performance, this device is perfect for high-traffic environments where secure, touchless access is essential.
With an impressive capacity for up to 30,000 facial templates (expandable to 50,000), along with support for 50,000 cardholders and 1,000,000 transaction records, the device also includes advanced palm recognition with up to 5,000 palm templates, offering multiple layers of security.
ProFace supports full access control features, including anti-passback, and interfaces for third-party electric locks, door sensors, exit buttons, alarms, and doorbells. It also has built-in auxiliary inputs to integrate with emergency switches or detectors, adding to its flexibility. Communication is seamless with support for TCP/IP, Wi-Fi and Wiegand.
The ProFace is the perfect choice for businesses seeking a highly secure, durable, and intelligent access control solution with touchless biometric recognition.
Ultra-large capacity of facial templates for 1:N verification: 30,000 (standard) | max. 50,000 (optional)
Huge capacity of palm templates; 1:N - 5,000 palm templates
Anti-spoofing algorithm against print attack (laser, color and B/W photos), videos attack, and 3D mask attack
Intelligent energy-saving design; precisely evaluation of the distance (up to 2.5m (8.2ft)) between the user and the device by a microwave detector before waking up the recognition terminal
2MP starlight CMOS sensor camera with WDR function, which enables the terminal to recognize faces under extreme lighting conditions (0.5 lux – 50,000 lux)
8” touch screen with 400 lux, which offers high visibility under strong and direct light
IP68 dust-proof and waterproof standard & IK04 protection standard
bWide range of working temperature (-30 ~ 60°C; -22 ~ 140°F)
bMask detection; facial verification available with masks*
*Facial verification for masked individuals will increase FAR. Palm verification for masked individuals is recommended.
Memory expansion to 300 users
Memory expansion to 1,000 users (10,000 and 64,000 are also available)
Data converter
Auxiliary keypad
Internal Mifare reader
External HID proximity reader or other reader
Specifications
Capacity
Faces
30,000 (1:N) | 50,000 (Optional)
Palm
5,000 (1:N)
Users / Cards
50,000
Transactions
1,000,000 (Optional) | 2,000,000
User Photos
10,000
Event Photos
10,000
Compatibility
Security Relay Box
Wiegand / RS485 / RS232 Slave Reader with FP / RFID / Barc ode / QR-code
ZKBioSecurity Software
Standard Functions
Access Levels, Groups, Holidays, DST, Duress Mode (Password), Anti-Passback, Record Query, Tamper Switch Alarm, Custom Wallpaper & Screen Saver
Access Control Interface
Lock Relay Output
Alarm Output / Auxiliary Input
Exit Button / Door Sensor
Special Functions
IP68 & IK04
0.3s Hight Speed Facial Verification
Liveness Detection
HTTPS Communication Encryption (Optional)
Event Snapshot
Hardware
900MHz Dual Core Customized AI CPU
512MB RAM / 8G Flash
8″ Hight light (400lux) IPS Touch LCD
125KHz EM Reader / 13.56MHz MF(Optional)
2MP WDR Low Light Camera
Adjustable Light brightness LED
Hi-Fi Voice
High Sensitivity Microphone
Distance Detection Sensor
Reset Button and Tamper Switch
Communication
TCP/IP
Wiegand Input / Output
Wi-Fi (Optional)
RS485 / RS232
Additional Info
Face Algorithm: ZKLiveFace5.8
Palm: FAR ≤0.01%; FRR ≤1%
Working Temperature: -30°C ~ 60°C, (-22°F ~ 140°F)
Working Humidity: ≤93%
Storage Temperature: -40°C ~ 65°C, (-40°F ~ 149°F)
Storage Humidity: ≤93%
Net Weight: 853g

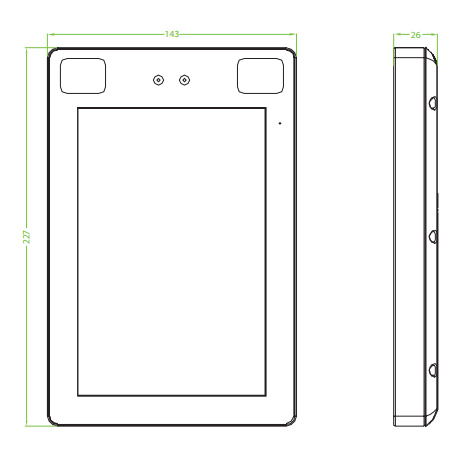

Dimensions (H*L*D): 227*143*26.1mm
Power
Operating Voltage: 12V DC
Current Draw: < 2,000mA
