Contactless Palm Recognition

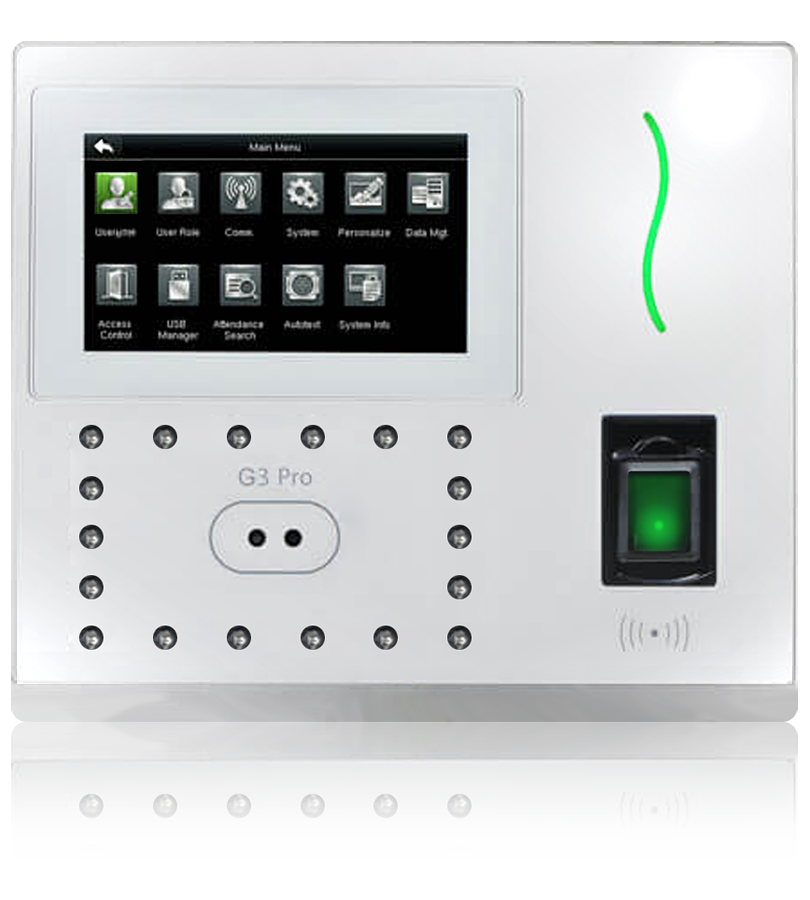

G3 Pro

Revolutionary 3-in-1 Contactless Palm Recognition Terminal

G3 Pro is powered by Computer Vision technology like 3-in-1 contactless palm recognition, which means the terminal can perform bio-authentication with a user’s palm vein, palm print, and the shape of palm at the same time once the sensor detects a hand presented.
Palm vein and palm print patterns are reliable human identifiers as the details are extremely hard to be duplicated, thus, together with the powerful algorithm, users may enjoy the terminal’s enhanced anti-spoofing ability.

Eliminating hygienic concerns, G3 Pro, equipped with a novel hand tracking technique allowing angle tolerance as wide as +/-60° in the roll axis, the huge capacity of 6,000 palm templates, and a 1.4GHz quad-core CPU, extracts palm print and vein pattern for analysis at a distance for recognition from 0.2m to 0.5m in less than 0.35s. Users no longer need to struggle to touch the sensor at a specific angle and align the center of the palm with the center of the input sensor for proper hand images to be acquired.

palm recognition

Modern Design & Interactive UI

Revolutionary SilkID

Fingerprint Sensor

Multiple Verification Modes

Face / Fingerprint / Palm / Card / Password

Outstanding Performance With Dry, Wet and Rough Fingers

Simple Management & Scalability

Software

Dakar Access Control Management

Specifications

Capacity

Fingerprints

20,000

Faces

12,000

Palm

6,000

Cards

20,000

Transactions

200,000

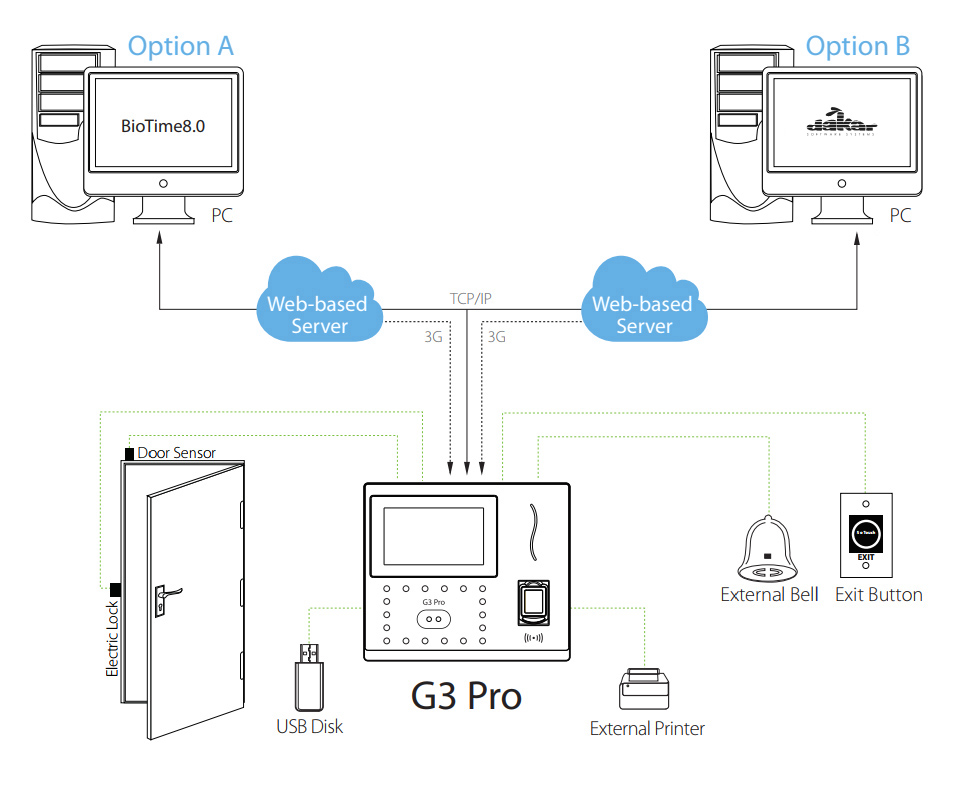

Communication

TCP/IP  |  USB Host  |  Wiegand Output

Access Control Interface

Lock Relay Output
Alarm Output
Exit Button
Door Sensor
External Bell

Hardware

1.4GHz Quad Core CPU
Memory 1G RAM / 1G Flash
SilkID Fingerprint Sensor
4.3 Inches Touch Screen
Hi-Fi Voice & Indicator
Tamper Switch Alarm

Standard Functions

ID Card / Work Code / WDMS
DST / SMS / Bell Schedule
Attendance Status Auto-Switch
Record Query / Photo ID
Custom Wallpaper & Screen Saver

Special Functions

Multiple Biometric Verification Modes
Alive Face / Palm Detection
Duplicate Face / Palm Detection

Optional Functions

HID Proxy / Mifare Card Reader
Wi-Fi / 3G
External Printer
Battery (2,000 mAh)
POE (Standard IEEE 802.3at)

Compatibility

BioTime8.0
ZKBioSecurity (T&A)
WDMS

Additional Info

Working Temperature: 0 °C ~ 45 °C

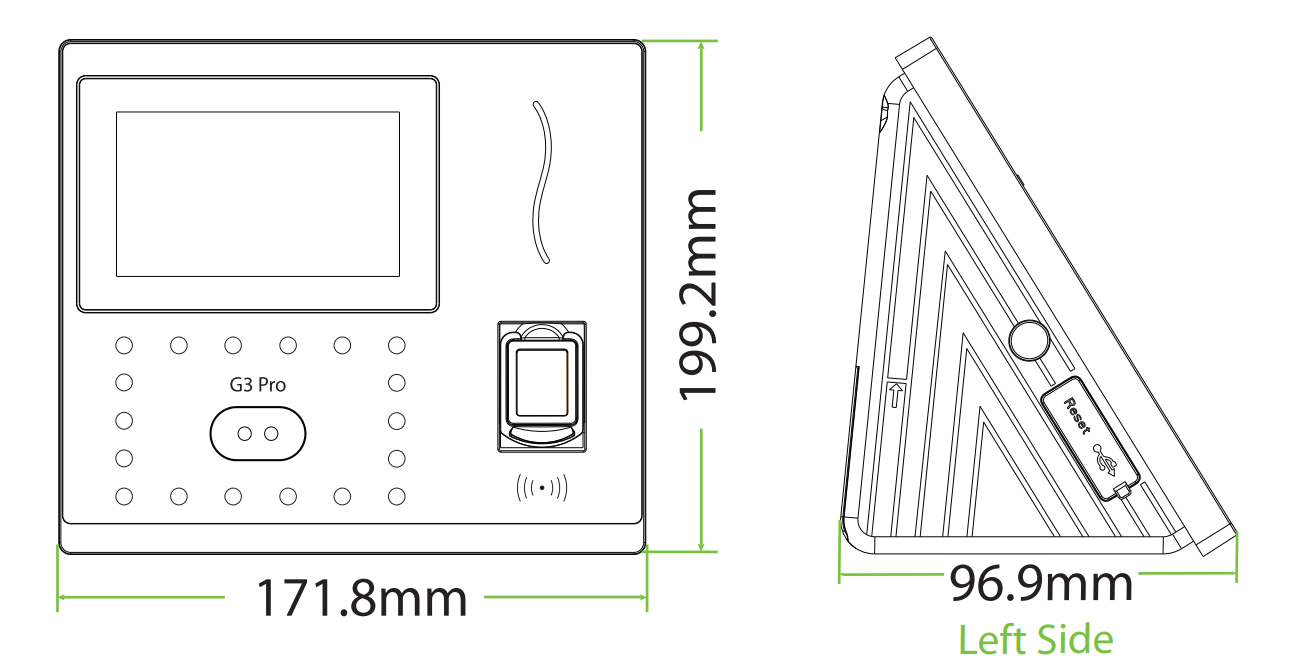

Dimensions: 199.2 × 171.8 × 96.9 mm
Algorithms: ZKFace v12.0 & ZKFinger v10.0 & ZKPalm V12.0
Fingerprint: FAR≤0.0001%; FRR≤0.01%
Face: FAR≤0.001%; FRR≤1%
Palm: FAR≤0.01%; FRR≤1%

Power

Operating Voltage 12V DC
Current Draw < 500 mA
